Custom flags are a powerful way to identify any particular section of the treatment, such as an acid slug, a diverter drop or a change of proppant type among others. And now, these flags can be also used to align your plots on the Stage Compare page.
To get started, on any graph, you can click the Flag button on the toolbar to add a New Custom Flag Type.
A small window will popup where you can name your Custom Flag and define if you will use the flag to align plots on Stage Comparison.

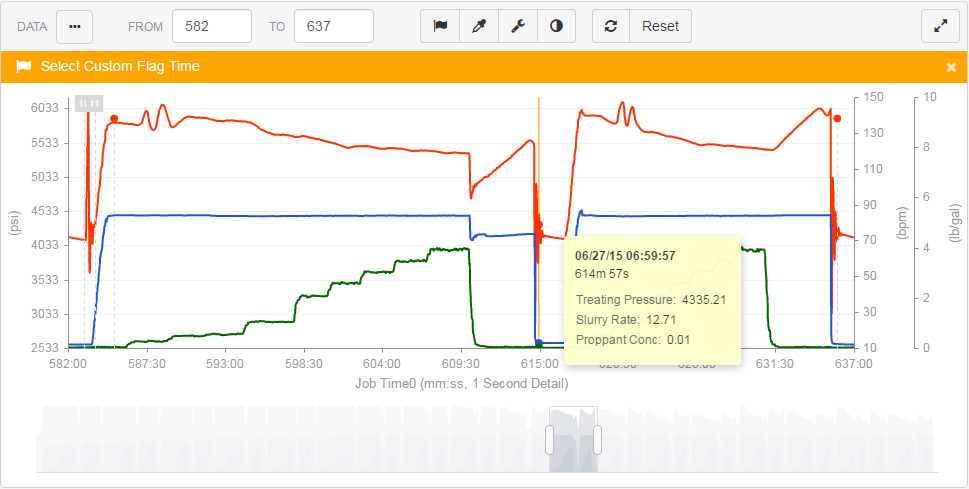

Once the flag is created, you can select it from the drop-down flag list and click on the time in the plot you'd like to mark.
A small window will popup where you can add a comment if needed and save the custom flag.
You'll see the Custom Flag that has been added to the job as open red triangles on top of it. By hovering over the marker, a small text box will pop up with the timestamp and the name of the flag.
You can assign as many flags as you want in the same stage!

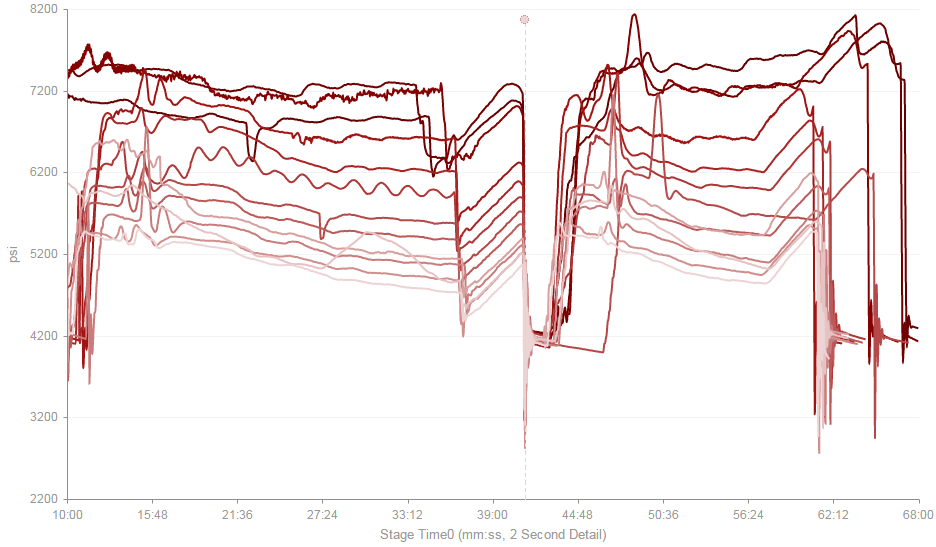

Now, when you use the Stage Comparison tool, you can align your plots on the custom flag of your preference using the Chart Options tool.
